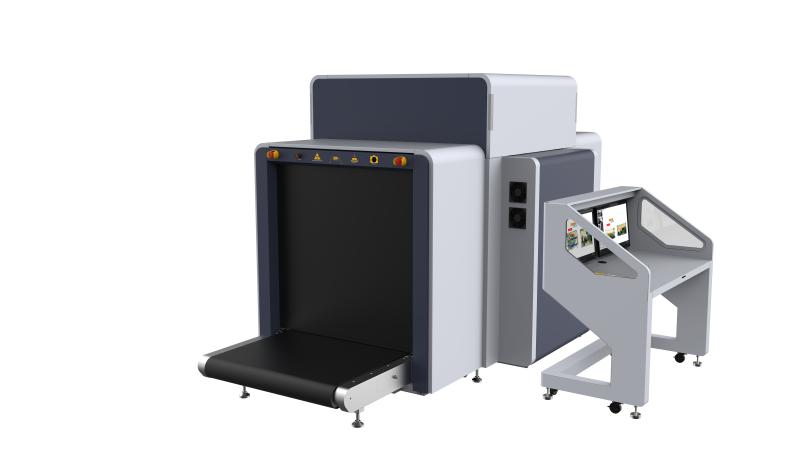

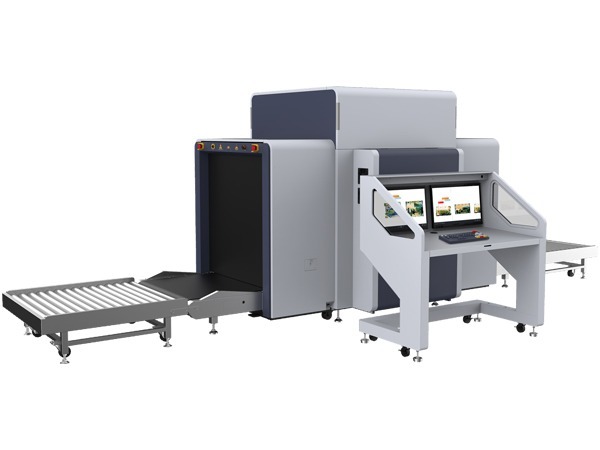

X-Ray Baggage Scanner

Tunnel Size

1000 mm (W) × 1000 mm (H)

Max Load

200 kg (440.92 lb)

Conveyor Speed

Adjustable: 0.2 / 0.3 / 0.4 m/s

Penetration

30 mm (standard), 34 mm (typical)

Wire Resolution

36 AWG (bottom view), 38 AWG (side view)

Spatial Resolution

1.3 mm (horizontal & vertical) – both views

Radiation Dose per Scan

< 10 μSv

Radiation Leakage

< 1 μSv/h

X-ray Generator

160 kV anode voltage, dual generator, oil-cooled, vertical & horizontal beams

Material Identification

Recognizes atomic number equivalents (e.g., metals, organics) via color

Intelligent Recognition

Deep learning algorithm integrated with X-ray imaging

Authentication

Supports facial and fingerprint login

Event Tracing

Links X-ray images with passenger video for human-package tracing

Data Storage

Local storage, image/alarm review, playback supported

Network Integration

Compatible with central management systems (e.g., remote upload supported)

Radiation Control

Double lead curtain reduces radiation and shadowing

Speed Adjustment

Speed adjustable based on operational scene

Startup Safety

Radiation leakage meets environmental safety standards
