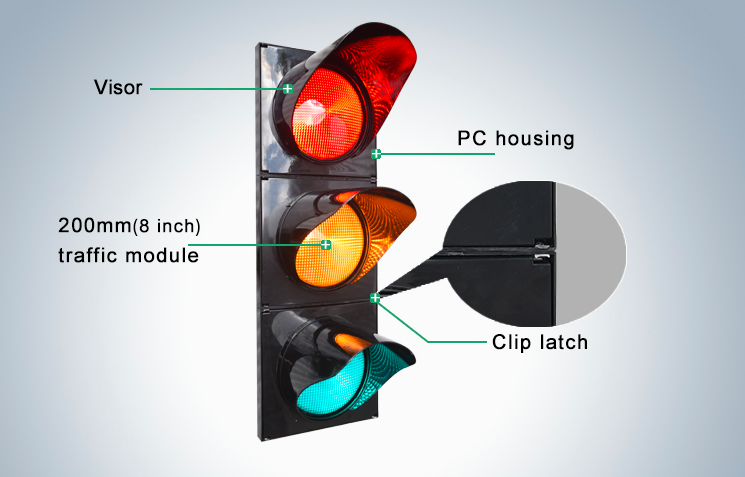

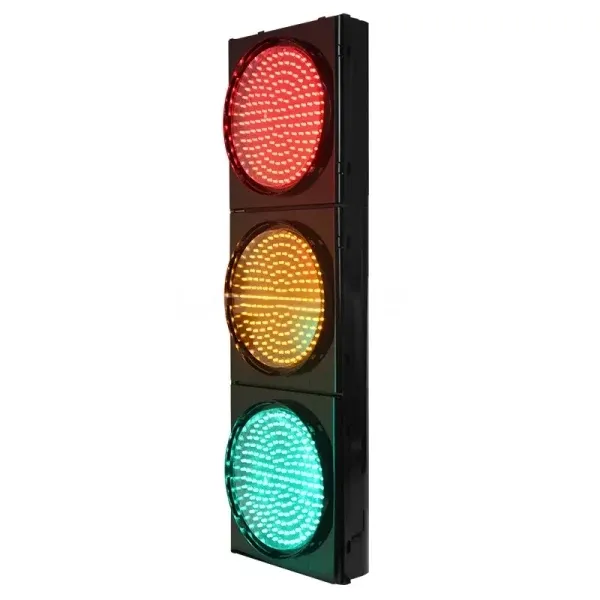

High Intensity RYG LED Traffic Light 200mm

Key Features:

• Wide Operating Voltage: The unit operates on a wide input voltage range of AC 85V-265V and DC 10-30V, ensuring stable performance in various electrical environments.

• Optimal Optical Performance:

  • Equipped with a transparent, impact-resistant polycarbonate optical lens.

  • The design minimizes the anti-phantom effect, providing an optimal viewing angle and clear signals.

  • Conforms to the EN12368 standard with a viewing distance of over 300 meters.

• High-Intensity, Energy-Efficient LEDs:

  • Utilizes a high-intensity 5mm DIP (Dual In-line Package) LED light source from EPISTAR.

  • Designed for low energy consumption with a power factor greater than 0.9.

• Exceptional Longevity: The traffic light has a long life cycle of more than 80,000 working hours, reducing the need for frequent maintenance and replacement.

• Durable and Weather-Resistant Construction:

  • The housing is made from highly durable, UV-stabilized polycarbonate, ensuring resistance to harsh weather and sunlight.

  • The standard housing color is black, with fir-green and yellow options available upon request for larger quantities.

  • Operates effectively in a wide temperature range from -40°C to +80°C (Class A, B, C according to EN12368).

• Modular and User-Friendly Design:

  • The modular design allows for easy installation and maintenance.

  • Features a convenient snap-in open system for easy access to internal components.

• Flexible Mounting: The fixation system includes L-shaped and arm-shaped mounting brackets for versatile installation options.

• Certified Quality: This product is compliant with major quality and safety standards, including CE, RoHS, EN12368, and ISO9001.

Technical Specifications:

• Diameter: ϕ 200mm

• LED Type: 5mm DIP

• Optical Performance: Conform to EN12368 standard

• View Distance: ≥ 300m

• Input Voltage: AC 85V-265V, DC 10-30V

• Power Factor: > 0.9

• Working Temperature: -40°C ~ +80°C (Class A, B, C acc. to EN12368)

• Material (Lens/Housing): UV-stabilized polycarbonate

• Housing Color: Black (standard), fir-green/yellow available upon quantity request

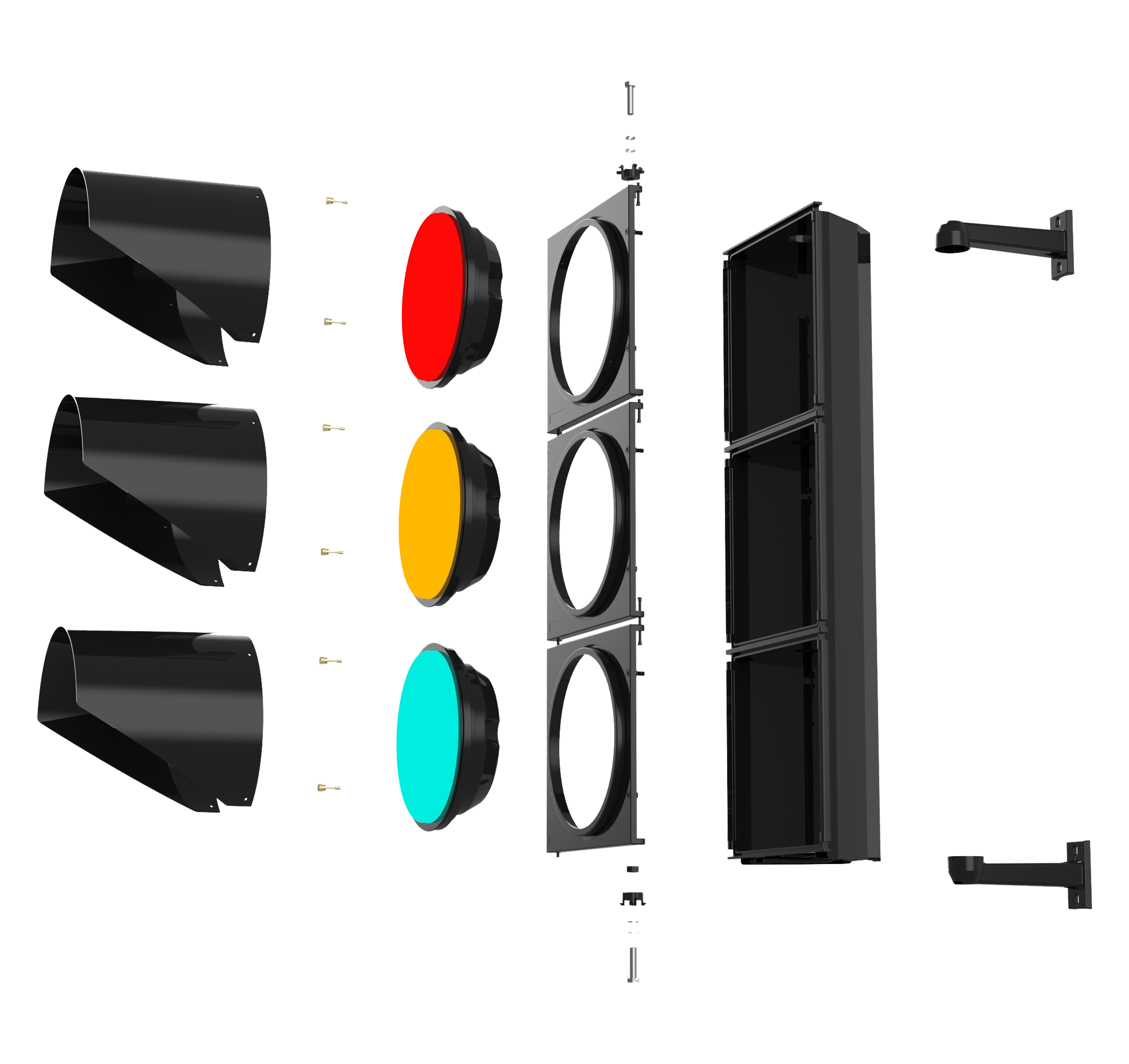

Components:

• Housing

• Visors & Brackets

Packaging Information:

• Carton Size: 973728 cm

• Quantity: 1 set/carton

• Net Weight: 8.5 kg

• Gross Weight: 9.8 kg

• Volume: 0.1 m³
