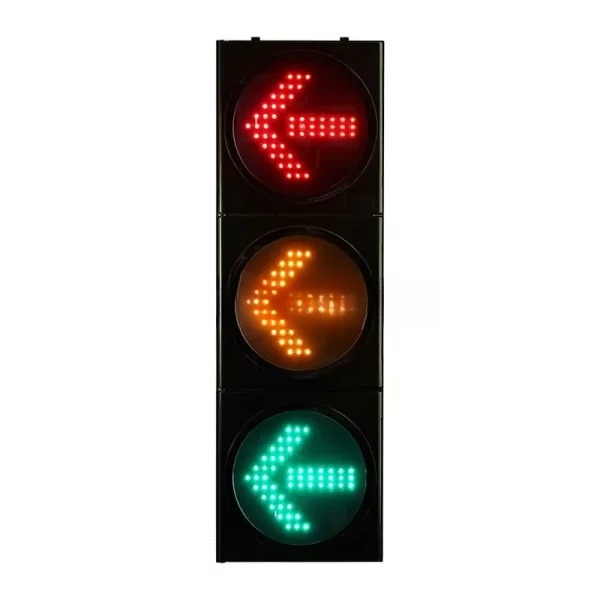

Clear Lens RYG LED Traffic Light 200mm

Key Features:

• Wide Operating Voltage: The traffic light is compatible with a wide input voltage range of AC 85V-265V and DC 10-30V, providing stable operation in various electrical settings.

• Optimal Optical Performance:

  • A transparent, impact-resistant polycarbonate optical lens ensures durability and clear signal projection.

  • The design minimizes the "anti-phantom" effect, which prevents false signals from external light sources and ensures an optimal viewing angle.

  • Conforms to the EN12368 standard, with a viewing distance of over 300 meters, ensuring high visibility for drivers.

• High-Intensity, Energy-Efficient LEDs:

  • It utilizes high-intensity 5mm DIP (Dual In-line Package) LED light sources from EPISTAR for brilliant and clear signaling.

  • Designed for low energy consumption with a power factor greater than 0.9, contributing to reduced operational costs.

• Exceptional Longevity: With a long life cycle of over 80,000 working hours, this traffic light significantly reduces maintenance frequency and replacement costs.

• Durable and Weather-Resistant Construction:

  • The housing is made from highly durable, UV-stabilized polycarbonate, providing excellent resistance to harsh weather and sunlight.

  • The traffic light is rated to operate effectively in a wide temperature range from -40°C to +80°C, conforming to Class A, B, and C classifications under EN12368.

  • Standard housing color is black, with fir-green and yellow options available upon request for larger quantities.

• Modular and User-Friendly Design:

  • A modular design facilitates easy installation and maintenance.

  • The snap-in open system allows for quick and simple access to internal components.

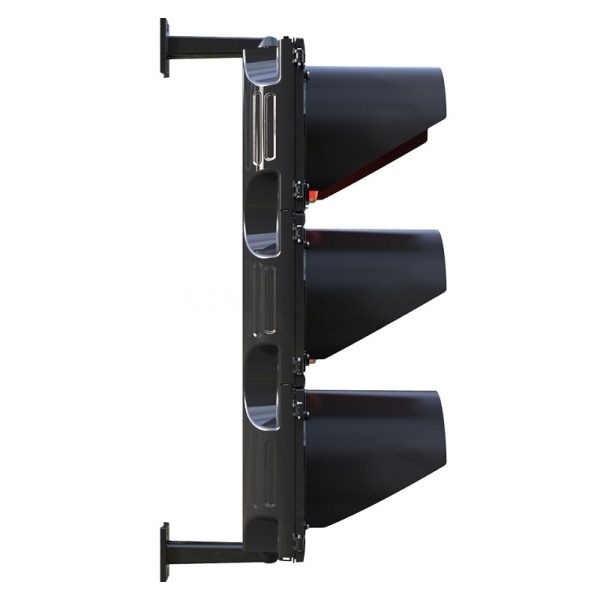

• Flexible Mounting: The unit comes with L-shaped and arm-shaped mounting brackets for versatile and secure installation.

• Certified Quality: This product is compliant with major quality and safety standards, including CE, RoHS, EN12368, and ISO9001.

Technical Specifications:

• Diameter: ϕ 200mm

• LED Type: 5mm DIP

• Optical Performance: Conform to EN12368 standard

• View Distance: ≥ 300m

• Input Voltage: AC 85V-265V, DC 10-30V

• Power Factor: > 0.9

• Working Temperature: -40°C ~ +80°C (Class A, B, C acc. to EN12368)

• Material (Lens/Housing): UV-stabilized polycarbonate

• Housing Color: Black (standard), fir-green/yellow available upon quantity request

Packaging Information:

• Carton Size: 97 x 37 x 28 cm

• Quantity: 1 set/carton

• Net Weight: 8.5 kg

• Gross Weight: 9.8 kg

• Volume: 0.1 m³

Components:

• Housing

• Visors & Brackets
